Expert Commercial Awning Construction, Installation & Repairs in Sydney
Storm damage or a failed tie rod? We offer emergency call-outs across Sydney to make your commercial awning safe, fast.
At Shop Awning Repairs Sydney, our team delivers end-to-end expertise in both constructing brand-new commercial awnings and executing precise site installations. A commercial shopfront canopy is engineered to significantly higher standards than domestic shading. It must withstand heavy wind uplift, intense UV exposure, and continuous public foot traffic.
From structural design and engineering approvals to on-site mounting, we manage every phase of construction. Whether commissioning a new build for a retail storefront, commercial complex, or hospitality venue, our installations guarantee long-term structural safety, visual appeal, and full regulatory compliance.
We also repair and maintain existing commercial awnings across Sydney, from storm damage and corroded tie rods to failed cladding, blocked box gutters and general wear. If your commercial awning needs fixing rather than replacing, our licensed team assesses the structure and recommends the right repair, not an unnecessary rebuild.
25+ Years
Industry Experience
$20M
Public Liability Insurance
Licensed
NSW Builder (Lic. 196494C)
Registered
Class 2 Building Practitioner
Core Structural Components in Awning Construction

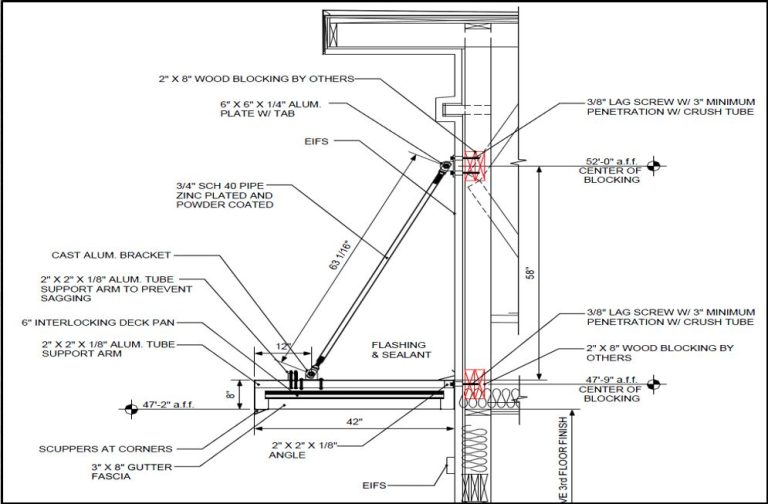

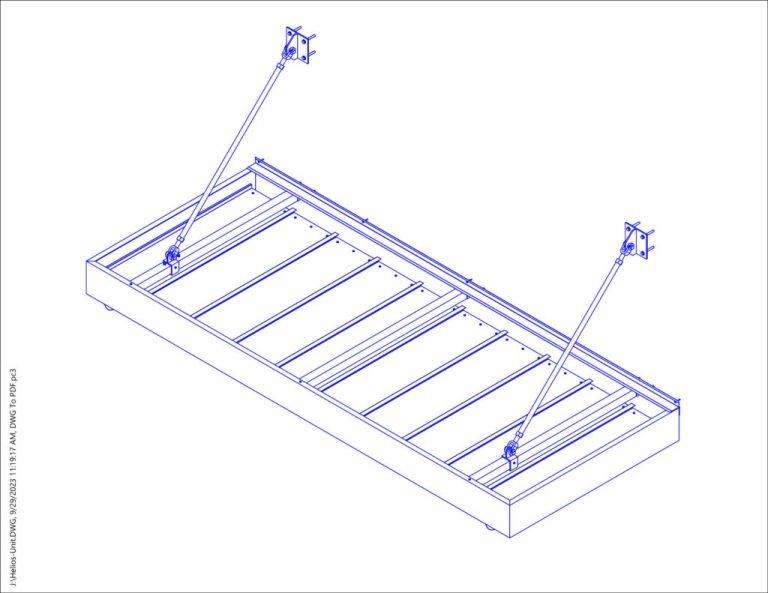

The Primary Frame & Structural Skeleton
- Engineering Materials: We construct frames using high-grade extruded aluminium for rust-proof durability on lighter spans, or heavy-duty hot-dip galvanised structural steel for long-span commercial applications.
- Support Configurations: Based on projection depth and structural anchoring, our team installs cantilevered frameworks supported by overhead tie rods or heavy-duty vertical posts where required.
The Cladding & Covering Substrate
- Architectural Fabrics: Heavy-duty solution-dyed acrylics or industrial PVC vinyls treated for UV resistance, waterproofing, and fire retardancy.
- Rigid Cladding: Galvanised steel decking, translucent polycarbonate panels, or custom-pressed metal panels designed for heavy-duty retail and commercial facades.
Integrated Water Management & Drainage
- Rainwater Conveyance: To prevent water pooling and dynamic load strain, our team integrates custom box gutters, calculated fall angles, and internal downspout connections that channel rainwater cleanly into the building’s stormwater system.
Deep Dive: Structural Tie Rod Systems

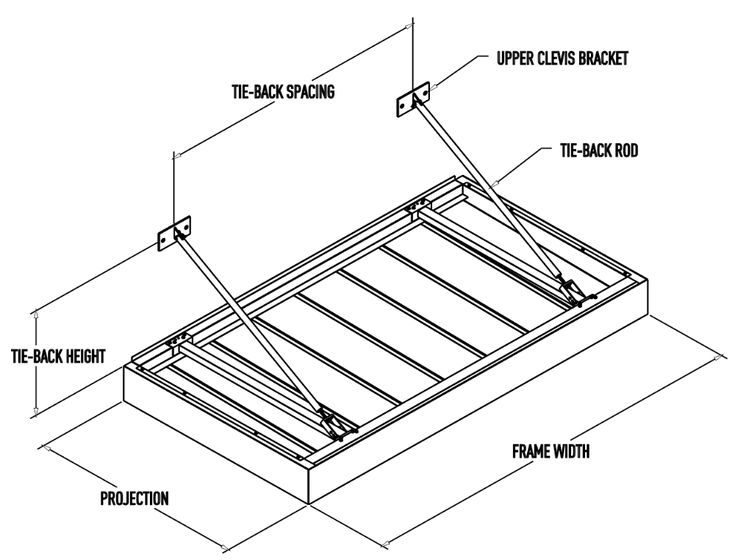

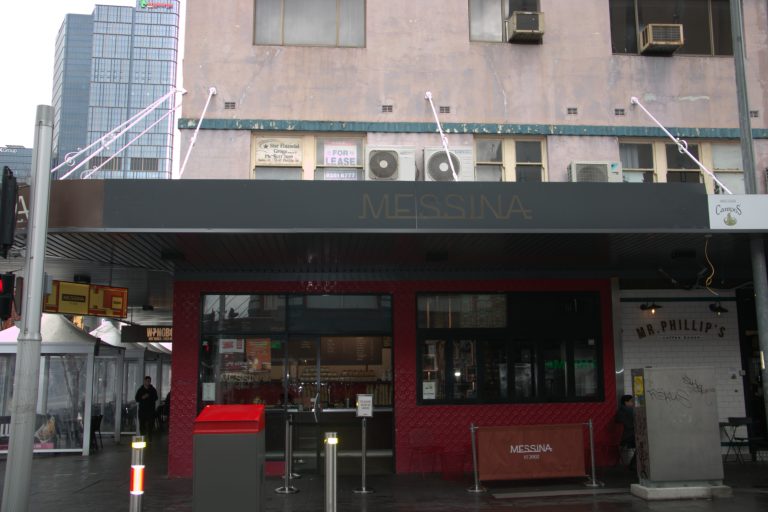

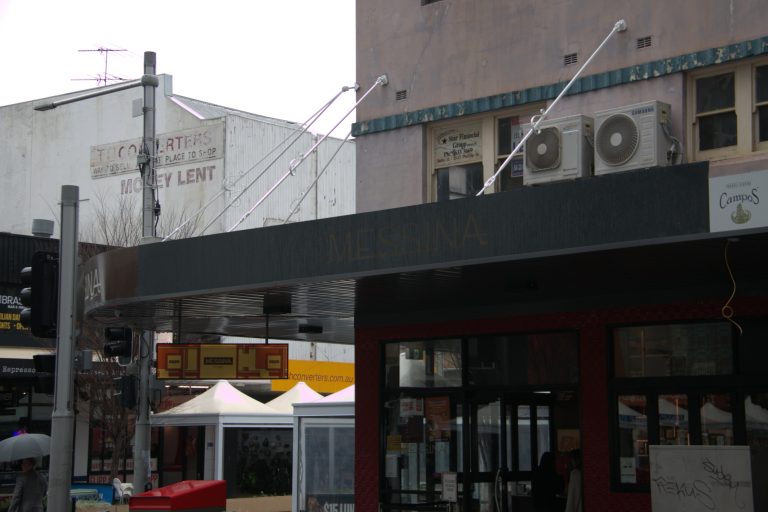

Overhead tie rods (tension struts) are critical structural members in commercial awning construction. They suspend the outer edge of the frame from the building wall above, transferring downward dead loads and dynamic wind uplift back into the primary building structure without requiring ground support posts.

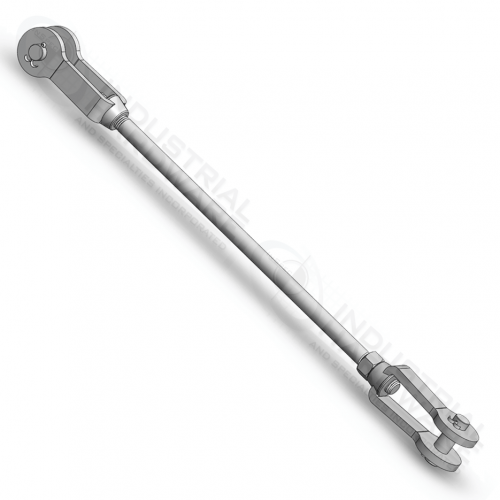

Fixed-Length Tie Rods
Design & Engineering: Fixed-Length tie rods consist of a solid, continuous steel or stainless-steel rod custom-machined to an exact pin-to-pin distance. They feature fixed threaded ends or welded clevis joints attached directly to mounting brackets.
Structural Role: Best suited for standardized awning designs or structural retrofits where wall connection heights and projection depths are precise and unyielding. Because there are no adjustable turnbuckles along the length of the rod, fixed systems offer a clean, minimalist aesthetic with fewer mechanical joints. However, they require absolute precision during initial site measuring and installation.

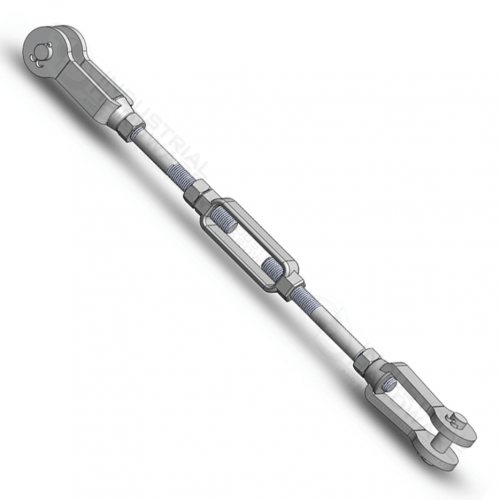

Adjustable-Length Tie Rods (Clevis & Turnbuckle Assemblies)
Design & Mechanics: Adjustable tie rod assemblies utilize oppositely threaded rods (right-hand thread on one end, left-hand thread on the other) connected via an inline turnbuckle assembly or threaded clevis ends.
Structural Role: Rotating the turnbuckle or clevis end alters the overall length of the rod assembly, allowing installation technicians to fine-tune tension levels, eliminate slack, and establish exact slope angles on-site. This adjustability is vital for leveling heavy commercial frameworks, accommodating natural building settlement over time, and ensuring proper rainwater runoff fall toward internal gutters.
Understanding Hot-Dip Galvanised Steel
To ensure decades of corrosion resistance in Sydney’s coastal climate, our heavy-duty steel frameworks and tie rod assemblies undergo hot-dip galvanising.
What Does Hot-Dipped Mean?

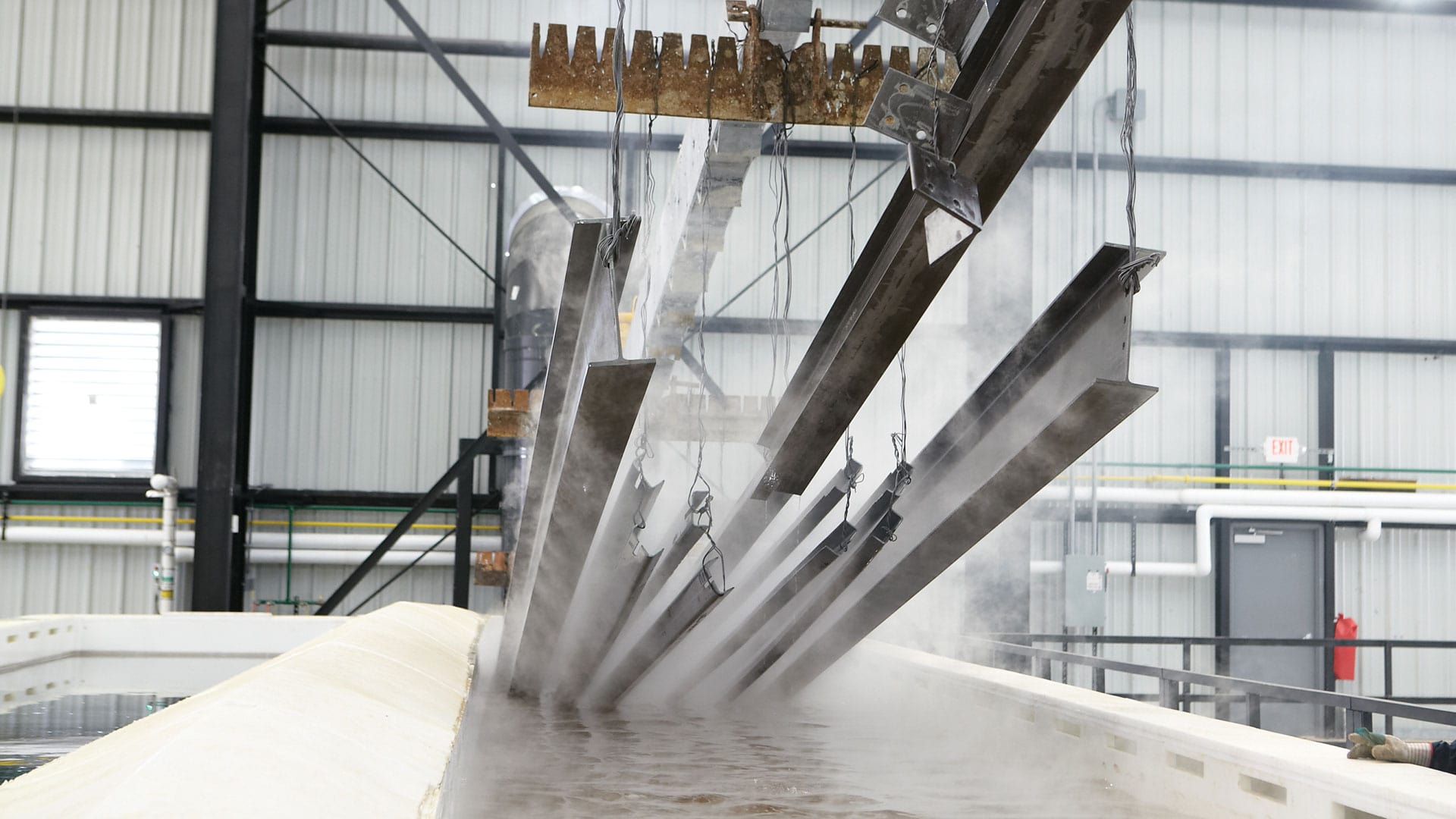

Hot-dip galvanising is a metallurgical coating process governed by Australian Standard AS/NZS 4680. Fabricated raw steel framework components are immersed in a series of chemical cleaning baths (degreasing and acid pickling) before being lowered into a bath of molten zinc heated to approximately 450°C.
Metallurgical Bond & Dual Protection:
Unlike standard paint or surface sprays that merely sit on top of metal, hot-dipping causes a chemical reaction where iron and molten zinc fuse into a series of tough zinc-iron alloy layers bonded directly to the steel base.
• Barrier Protection: The solid outer zinc layer creates an impermeable seal protecting the internal steel from moisture, atmospheric oxygen, and industrial pollutants.
• Cathodic (Sacrificial) Protection: If the surface is scratched or gouged during service, the surrounding zinc layer corrodes preferentially to protect the underlying steel, preventing rust from creeping beneath the coating. This yields decades of maintenance-free service even in harsh coastal air.
Our Construction & Installation Process
1st Phase: Substrate Analysis & Engineering
Structural Assessment & Engineering Design
Our construction process begins with a comprehensive structural assessment of the building façade (brickwork, concrete, or steel columns). Structural engineers calculate wind load requirements compliant with AS/NZS 1170.2 standards to specify frame gauge, anchor depth, and tie-rod load ratings.
2nd Phase: Local Council Safety Requirements
Municipal Approvals & Compliance
Street-overhanging awnings must meet strict local council regulations. Shop Awning Repairs Sydney designs and installs all structures to align with local requirements, including the City of Sydney Awnings Policy and Inner West Council Planning Regulations to ensure correct height clearances (minimum 2.4m–3.2m above footpaths) and public safety compliance.
3rd Phase: Precision Off-Site Fabrication
Frame Fabrication & Hot-Dip Treatment
All framework elements, tie rods, and mounting brackets are cut, welded, and pre-assembled off-site. Steel components undergo batch hot-dip galvanising under AS/NZS 4680 standards for maximum corrosion protection, while cladding and fabrics are precision-tailored for a seamless fit.
4th Phase: On-Site Structural Installation

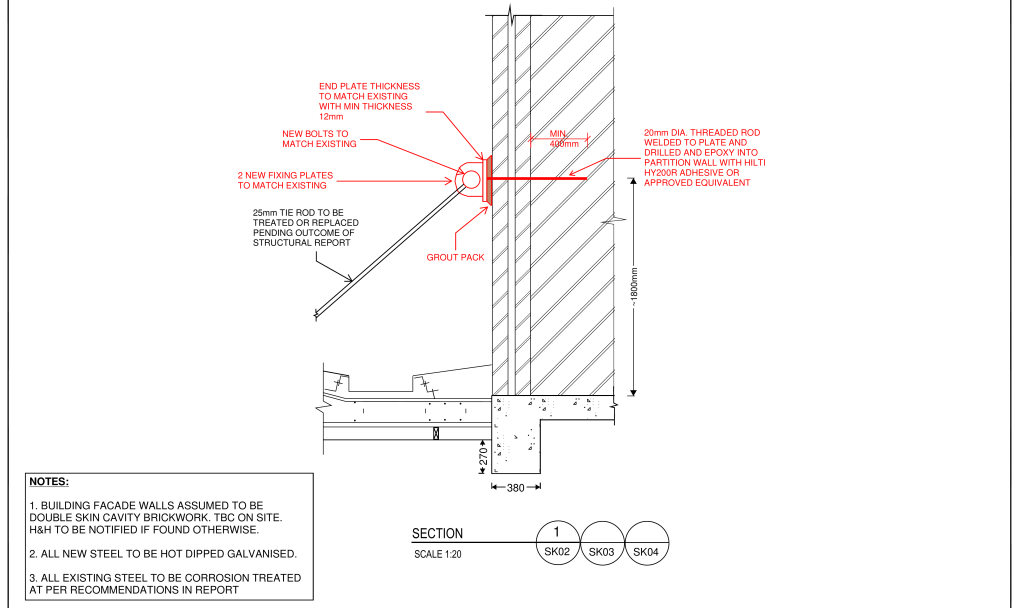

Anchoring, Frame Erection & Tie Rod Calibration
Our experienced installation technicians fix heavy-duty chemical anchors and mounting plates into structural load points on the wall. The main frame is hoisted into place and secured via engineered overhead tie rods, which are calibrated and tensioned using turnbuckles to guarantee precise leveling and load distribution.
5th Phase: Weatherproofing & Final Handover
Cladding, Flashing & Drainage Integration
The chosen cladding, metal decking, polycarbonate sheeting, or stretched commercial fabric is installed. We fit integrated box gutters, flashing seals, and soffit linings before conducting a thorough final safety and structural check.
Material & Structural Options for New Constructions
If your building is strata-managed, see our Strata and Commercial Awning Compliance Guide for additional approval requirements.
Material Option | Structural Advantages | Recommended Application |
|---|---|---|
Hot-Dip Galvanised Steel with Adjustable Tie Rods | Maximum yield strength, fine-tune tensioning, and superior wind load capacity; ideal for deep projections without ground posts. | High-density retail strips, shopping centers, and commercial streetfronts. |
Extruded Aluminium Framework | Naturally corrosion-proof, lightweight, and low maintenance; ideal for salt-air exposure. | Coastal Sydney retail zones, modern commercial entrances, and medium shopfronts. |
Commercial PVC / Acrylic Skins | Flexible design possibilities, high visual impact, customized branding, and UV protection. | Hospitality venues, outdoor dining spaces, and retail shops requiring strong street presence. |
Polycarbonate & Metal Decking | Provides complete weather protection with options for natural daylight transmission. | Commercial entryways, laneways, arcades, and heavy industrial shopfronts. |
Not sure which material fits your building? Talk to our team about the right spec for your site.
Commercial Awning Service Areas
- Sydney CBD
- Eastern Suburbs
- Inner West
- Sutherland Shire
- Northern Beaches
- Chatswood
- Parramatta
- Hills District
Commercial Awnings Sydney: Frequently Asked Questions
A commercial awning is a permanent, engineered structure — typically a steel frame with a cladding substrate — fitted over a shopfront, walkway or building entrance for weather protection, branding and pedestrian shelter. Unlike a retractable domestic awning, commercial awnings are fixed structures built to meet council structural and safety requirements.
Commercial awning construction typically costs more than a standard residential installation, due to structural engineering, hot-dip galvanised framing and council compliance requirements. Final pricing depends on span, substrate and site access, so we provide a fixed quote after assessing your building.
Yes, in most cases. Sydney councils generally require a complying development certificate or development approval for awnings over public footpaths, plus an engineer's structural certificate for awnings more than 10 years old. Requirements vary by council area, and we manage this process for you.
Hot-dip galvanising bonds a zinc coating to steel through a metallurgical reaction, giving it dual corrosion protection. It's the industry standard for commercial awning frames because it withstands Sydney's coastal air and weather far longer than painted or untreated steel.
A well-engineered commercial awning with hot-dip galvanised framing and proper drainage can last 25 or more years with routine maintenance and periodic structural inspection, particularly in coastal or high-exposure locations.
Awnings over 10 years old require professional engineering certification, and annual visual inspections are recommended for exposed, corner or coastal sites. Regular checks catch corrosion, fixings and drainage issues before they become safety or compliance risks.
Low-cost commercial awnings often use lighter-gauge steel or skip hot-dip galvanising, which can mean rust and structural issues within a few years — so a cheap commercial awning in Sydney can end up costing more in repairs and re-certification down the track. We build to last 25+ years and can work with your budget on design and materials without cutting corners on structural compliance.
Commercial Awning Service Areas Across Sydney
We install, repair and maintain commercial awnings across greater Sydney. Click a pin to see the area we cover.
Why Choose Us as Your Commercial Awning Supplier
When you’re comparing commercial awning suppliers in Sydney, the details that matter are the ones you can’t always see from the street: the grade of steel, how the frame is fixed, and whether the person who built it stands behind the work. As a commercial awning supplier, we build every awning around three non-negotiables: hot-dip galvanised steel framing for genuine long-term corrosion resistance, properly specified tie-rod systems rather than undersized fixings, and drainage designed in from the start. Every project is backed by a workmanship warranty, and with 25+ years supplying and installing commercial awnings across Sydney, we’ve built for councils, strata, and shopfronts in every suburb from the CBD to Parramatta.
